MAXIMA-L3E

Features

There is only one electric-hydraulic pump to control the up&down of the platform, RSJ and pulling towers.

The equipment is highlighted by its rigid platform welded by milled steel boards.

The vehicle can drive on and off the patented hydraulic tiltable platform easily.

The pulling towers with patented round collar glide with ease around the entire equipment.

The hydraulic system has large pulling capacity, long lifespan and low malfunction.

The patented Universal Clamp can anchor all kind of chassis rock-solid.

The platform can work well with all kinds of measuring systems.

ISO9001:2008 certified.

Specification

Platform length 5500mm Platform width 2100mm
Platform height 500mm Max. pulling power of the tower 10 T
Working range 360° Max. hydraulic pressure 1.5kw
Max. lifting capacity 3500kg Weight 2700kg
Voltage 380v,3 phase/ 220v, 1 phase/220v, 3 phase
Product specifications may change without notice
MAXIMA-L3E

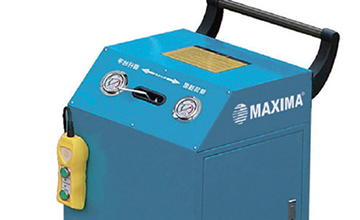

  • Powerful electric hydraulic pump is convenient and stable.

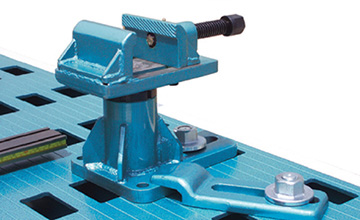

  • Universal clamps can anchor the cars rock solid.

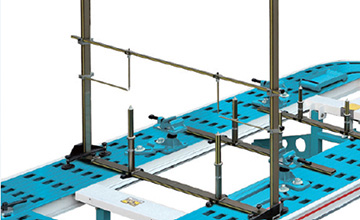

  • Precise measuring system.

  • low tension cylinder, wear resistance, longer serving life.
