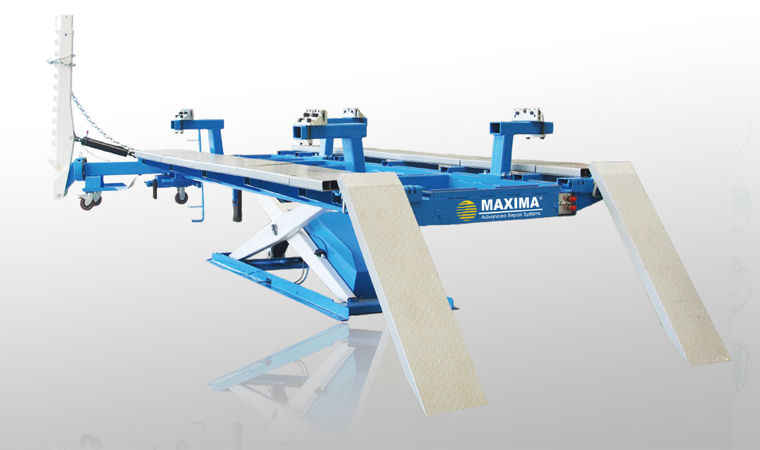

MAXIMA-M1000

Specification

Model M1000
Description Optimized platform for light cosmetic and heavy straightening repair with drive on capability and optional mobility
Segment Passenger car and SUV
Pulling capacity 10 Tons
Platform length 4180mm
Platform width 1230mm
Platform width with ramps attached 2070mm
Minimum height 420mm
Maximum height 1350mm
Maximum length with Pulling tower 5300mm
Maximum width with Pulling tower 2230mm
Lift capacity(Maximum vehicle weight) 3000Kgs
Weight 1000Kg
360° pulling capability Yes
Mobile capability Yes(Optional)
In ground capability Yes
Maximum height in ground 930mm
Lift capacity in ground (Maximum vehicle weight) 3000Kgs
Automatic tilt function Yes
Loading angle Platform 3.5° Ramp 12°
Milled surface for measuring Yes

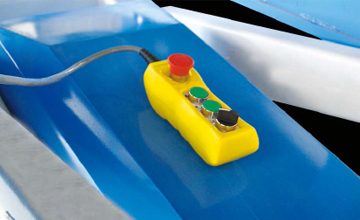

Remote control Energy supply Yes
Power 220V/380V 3Phase 110V/220V Single Phase
Product specifications may change without notice

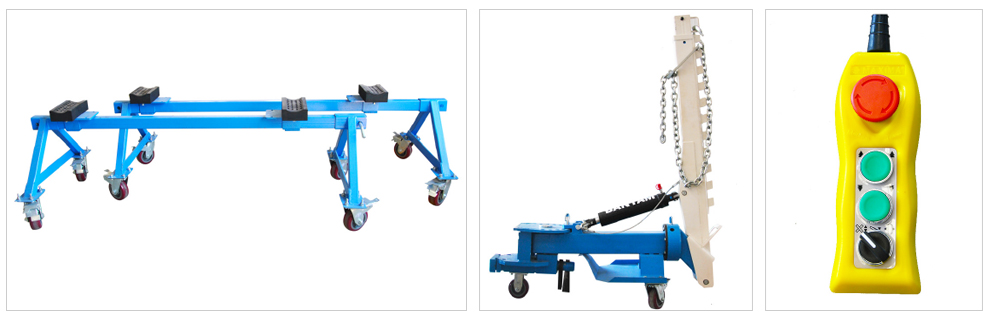

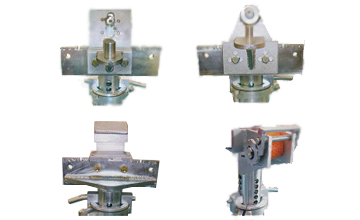

  • Optionol clamp head.

  • Intergrated pump & bench.

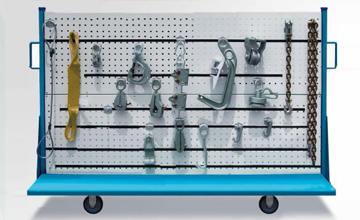

  • Pulling tools.

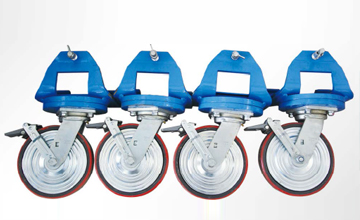

  • Mobile capability.
